Schakelkast verwarming (CSF Range)

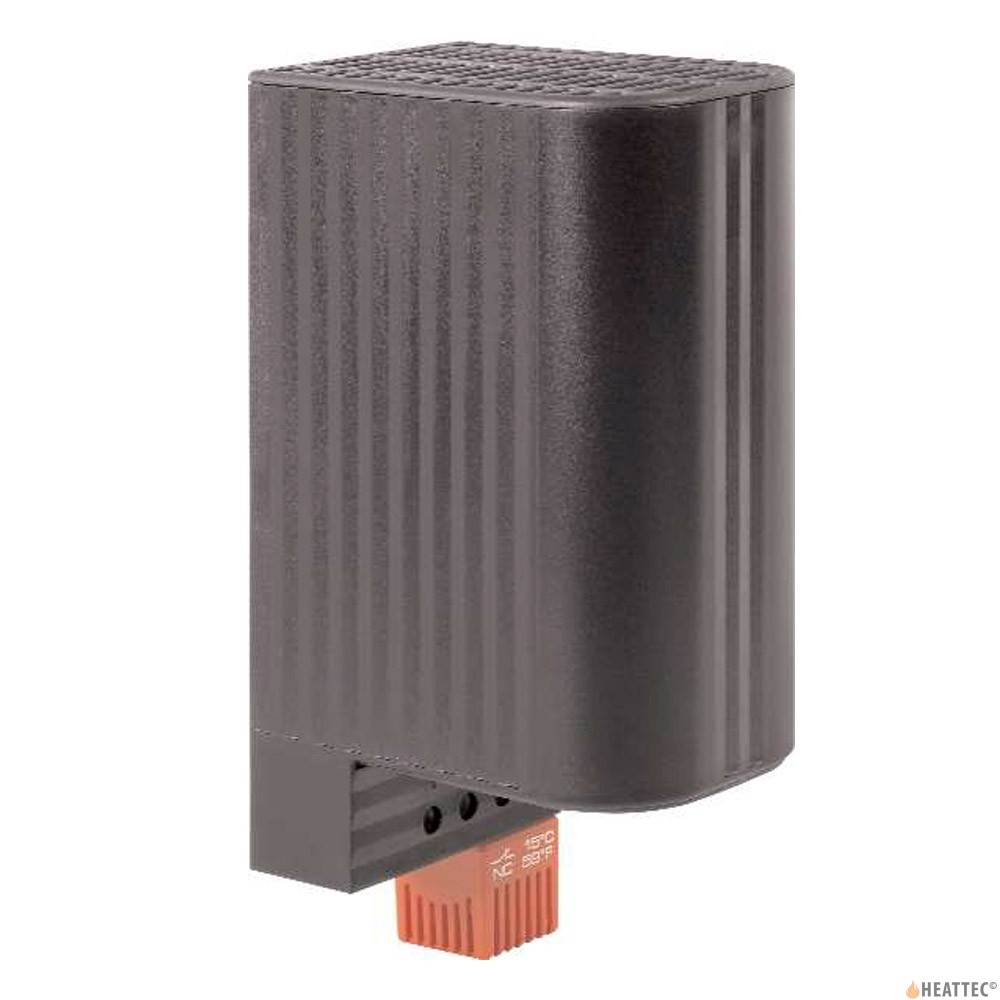

Control Cabinet Heater (CSF Range)

Schakelkast verwarming (CSF Range)

Artikelnummer: CSF06001
  • CSK 060 Range
  • with PTC heating element and thermostat
  • Heating element: self-regulating ptc heating element
  • Supply current: 120 - 240 Vac/dc. Max 265 V
  • Surface temperature: <80 °C (According to VDE 0100), except over top grille
  • Housing: Plastic according to UL94 V-0, black
  • Connection: 4 poles, 2.5 mm² terminal
  • Thermostat operating temperatures:
    CSF06001,  CSF06011, CSF06021
    Deconnection: 15 ± 5°C / Connection: 5 ± 5°C
    CSF06002,  CSF06012, CSF06022
    Deconnection: 25 ± 5°C / Connection: 15 ± 5°C


Beschikbaarheid: Levertijd op aanvraag

€ 92,71
€ 92,71

Zekerheden

  • Scherpe prijzen
  • Snelle levering
  • Advies van specialisten
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Productbeschrijving

Details

General characteristics

  • Heating element: self-regulating ptc heating element
  • Supply current: 120 - 240 Vac/dc. Max 265 V
  • Surface temperature: <80 °C (According to VDE 0100), except over top grille
  • Housing: Plastic according to UL94 V-0, black
  • Connection: 4 poles, 2.5 mm² terminal
  • Fixing: clip for 35mm DIN rail, EN 60715
  • Mounting position: vertical
  • Storage temp.: -45 °C (-49 °F) - 70 °C (158 °F)
  • Protection degree / class: IP 20 / II (protective insulation)
  • Standardisations: VDE + UL File nº E150057
  • Other technical data: On current below 140V AC/DC,
Extra informatie

Extra informatie

Verwachte levering 1-2 weken
Fabrikant Electricfor
