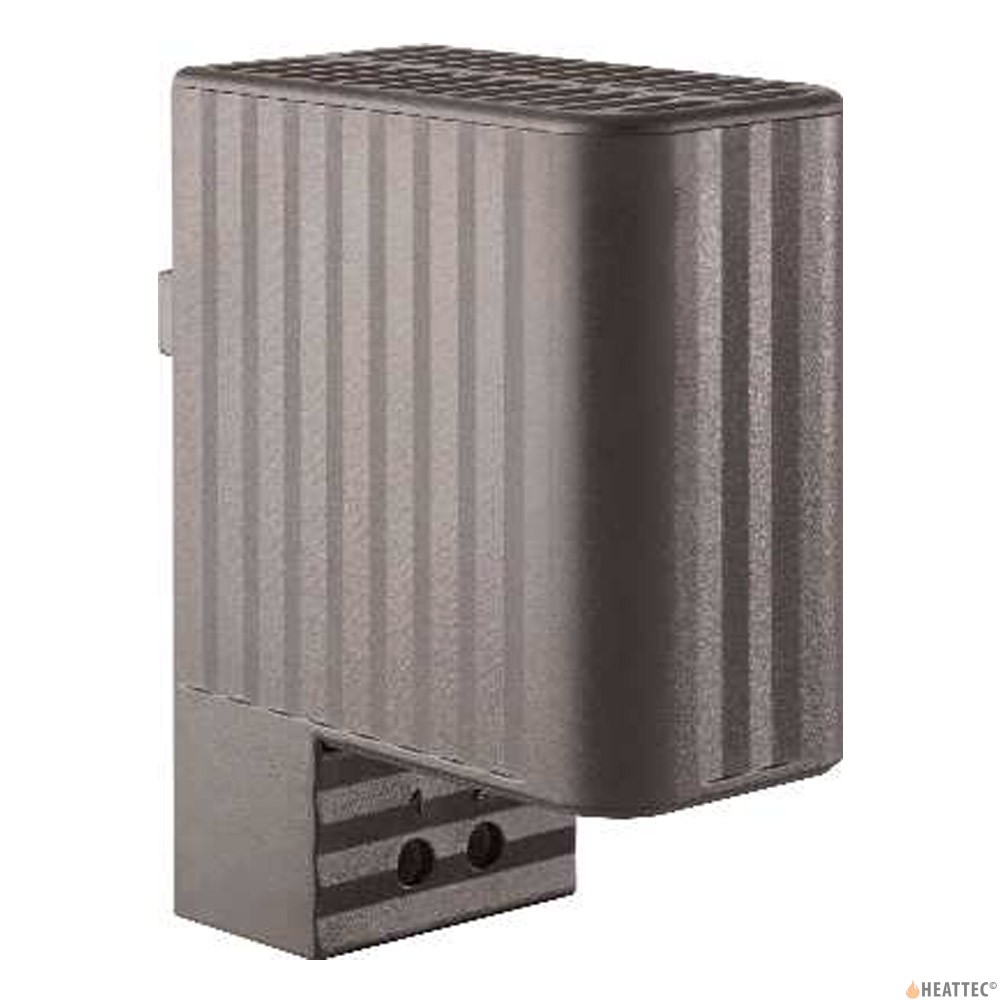

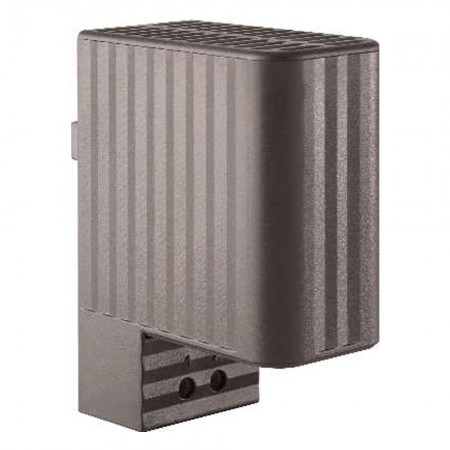

Schakelkast verwarming (CSK Range)

Control Cabinet Heater (CSK Range)

Schakelkast verwarming (CSK Range)

Artikelnummer: CSK06010
  • CSK 060 Range
  • with PTC heating element and thermostat
  • Heating element: self-regulating ptc heating element
  • Supply current: 150 - 250V ac/dc. Max 265V
  • Housing: <80 °C (According to VDE 0100), except over top grille
  • Connection: 2 poles, 2.5 mm² terminal
  • Fixing: clip for 35mm DIN rail, EN 60715
  • Mounting: position vertical
  • Storage: temp. -45 °C (-49 °F) - 70 °C (158 °F)

View leaflet

Beschikbaarheid: Levertijd op aanvraag

€ 43,44
€ 43,44

Zekerheden

  • Scherpe prijzen
  • Snelle levering
  • Advies van specialisten
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Productbeschrijving

Details

General characteristics

  • Heating element: self-regulating ptc heating element
  • Supply current: 150 - 250V ac/dc. Max 265V
  • Housing: <80 °C (According to VDE 0100), except over top grille
  • Connection: 2 poles, 2.5 mm² terminal
  • Fixing: clip for 35mm DIN rail, EN 60715
  • Mounting: position vertical
  • Storage: temp. -45 °C (-49 °F) - 70 °C (158 °F)
  • Protection: degree / class IP 20 / II (protective insulation)
  • Standardisations: VDE + UL File nº E150057
  • Other technical data: On current below 140V AC/DC, heating power is reduced by about 10%
Extra informatie

Extra informatie

Verwachte levering 1-2 weken
Fabrikant Electricfor
