Verwarmingsbanden voor containers AFHSSD

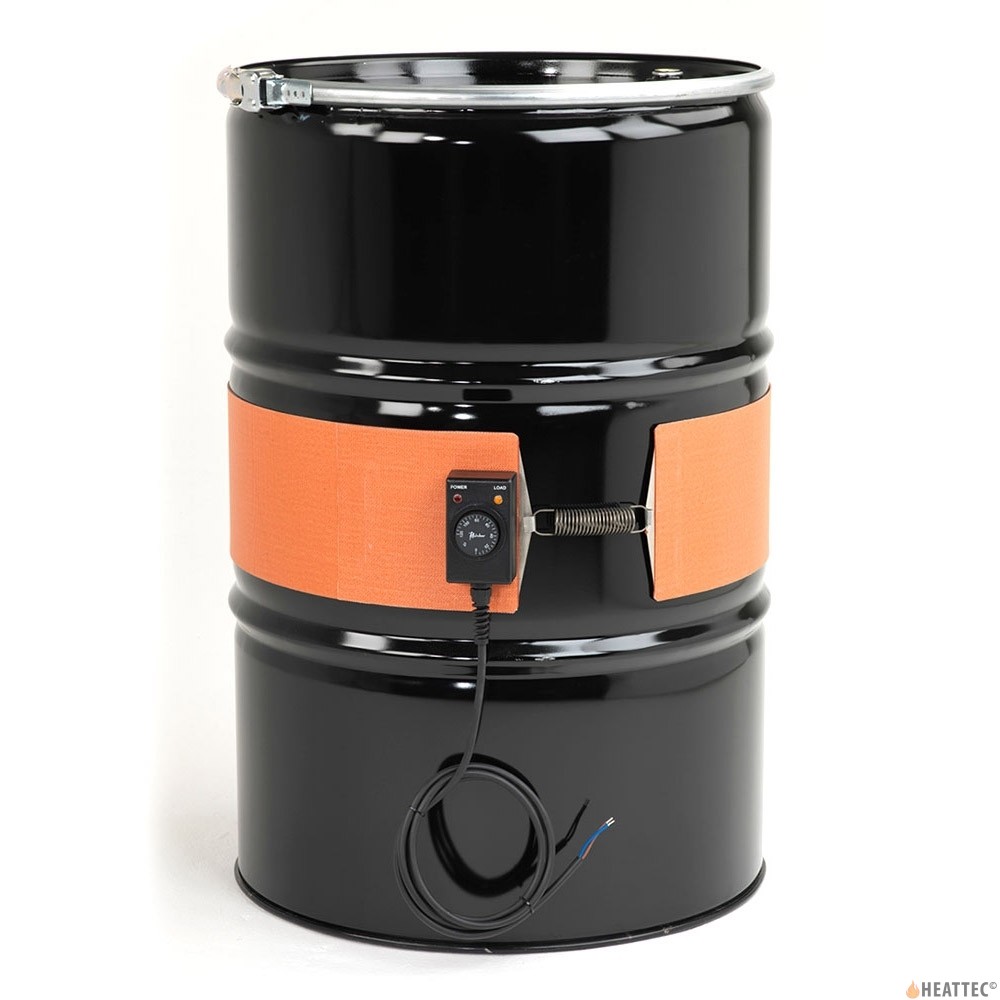

Drum heating band AFHSSD Electricfor
Drum heating band AFHSSD Electricfor Drum heating band AFHSSD Electricfor

Verwarmingsbanden voor containers AFHSSD

Artikelnummer: HTC-AFHSSD
  • Standaard voltage ~230 V
  • Klasse II.
  • Voedingskabel:
    - 1mm² Dubbel getwiste rubber geïsoleerde kabel.
    - Neoprene mantel
  • Temperatuurregeling:
    - van 20° tot 120°C
    - Instelbare capillaire thermostaat.
  • Element materiaal:
    - Silicone rubber / glasvezel mantel
    - Dubbel geïsoleerde constructie.

Bekijk brochure

Beschikbaarheid: Levertijd op aanvraag

€ 554,00
€ 554,00

Zekerheden

  • Scherpe prijzen
  • Snelle levering
  • Advies van specialisten
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Productbeschrijving

Details

Model
Thermostat temperature range (Lts)
Drum capacity
WxL
Heating length
Watts
Weight (Kg)
AFHSSD25
20/120°C
25
125x800
690
300
0,80
AFHSSD50
20/120°C
50
125x940
830
500
0,82
AFHSSD105
20/120°C
105
125x1300
1125
800
1,0
AFHSSD200A
20/120°C
200
125x1665
1490
1000
1,2
AFHSSD200C
20/120°C
200
180x1665
1490
1500
1,5

“AFHSSD” RANGE

  • The flexible AFHSSD silicone side drum heater is a simple and effective method of applying heat to drums and multiple units up to a maximum of three can be used to give quicker warm up times and higher product temperatures. The AFHSSD is specifically designed for the melting or reducing the viscosity of soaps, fats, varnishes and oil based type products. It can also be used in conjunction with the AFBCB base drum heater to increase product heat up.
  • The heating element of the AFHSSD is PTFE coated and sandwiched between multiple layers of silicone coated glass fabric.
  • A simple spring and clip arrangement that ensures good surface contact with the drum.

General characteristics

  • Standard voltage ~230 V
  • Class II.
  • Supply Lead:
    - 1mm² Twin Core rubber insulated conductors
    - Neoprene sheathed
  • Temp. Control:
    - 20° to 120°C
    - Adjustable Capillary Thermostat.
  • Heater Material:
    - Silicone rubber / Glass fibre sheet
    - Double Insulated Construction.
Extra informatie

Extra informatie

Thermostat temperature range 20/120°C
Fabrikant Electricfor
Verwachte levering 1-2 weken
