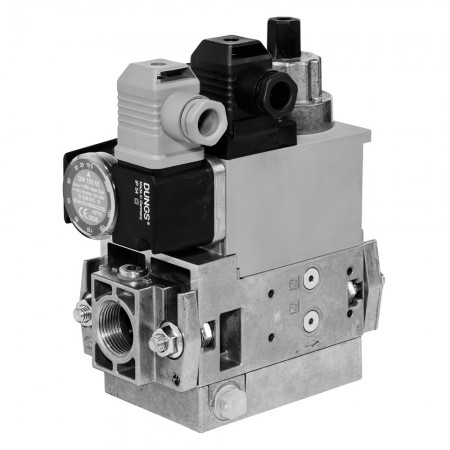

Dungs GasMultiBloc® MB-DLE

GasMultiBloc® MB-DLE

Dungs GasMultiBloc® MB-DLE

Artikelnummer: HTC-MB-DLE

The DUNGS GasMultiBloc® integrates filter, regulator, valves and pressure switches in one compact fitting.

View leaflet

Beschikbaarheid: Levertijd op aanvraag

€ 421,00
€ 421,00

Zekerheden

  • Scherpe prijzen
  • Snelle levering
  • Advies van specialisten
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Productbeschrijving

Details

  • Dirt trap unit: Fine-mesh sieve
  • One regulator, two main valves and one bypass valve: B07
  • Two valves are fast opening, one valve is slow opening
  • Solenoid valves up to 360 mbar (36 kPa) as per DIN EN 161 Class A Group 2
  • Sensitive setting of output pressure by proportional regulator as per DIN EN 88 Class A Group 2
  • High flow rates with low pressure drop
  • DC solenoid drive interference degree N
  • Main volume restrictor at valve V2, bypass restrictor at valve V3
  • Hydraulic opening delay
  • Flange connections with pipe threads as per ISO 7/1
  • Simple mounting, compact, lightweight

The modular system permits individual solutions by using an internal bypass valve in connection with separately controlled valves, by adding a valve proving system,
mini/maxi pressure switches, pressure limiters, limit switches at valve V2.

Application

The modular system permits individual solutions in gas safety and regulator engineering. Suitable for gases of families 1, 2, 3 and other neutral gaseous media.

Approvals

EC type testing certificate as per:

  • EC-Gas Appliances Regulation
  • EC-Pressure Equipment Directive

Approvals in other important gas consuming countries.

For more information, click here to take a look at the product brochure.

Extra informatie

Extra informatie

Naam Dungs GasMultiBloc® MB-DLE
Fabrikant Dungs
Max. werkdruk 360 mbar
Drukschakelaar GW150A5
Verwachte levering 1 week
Land van fabricage Duitsland
