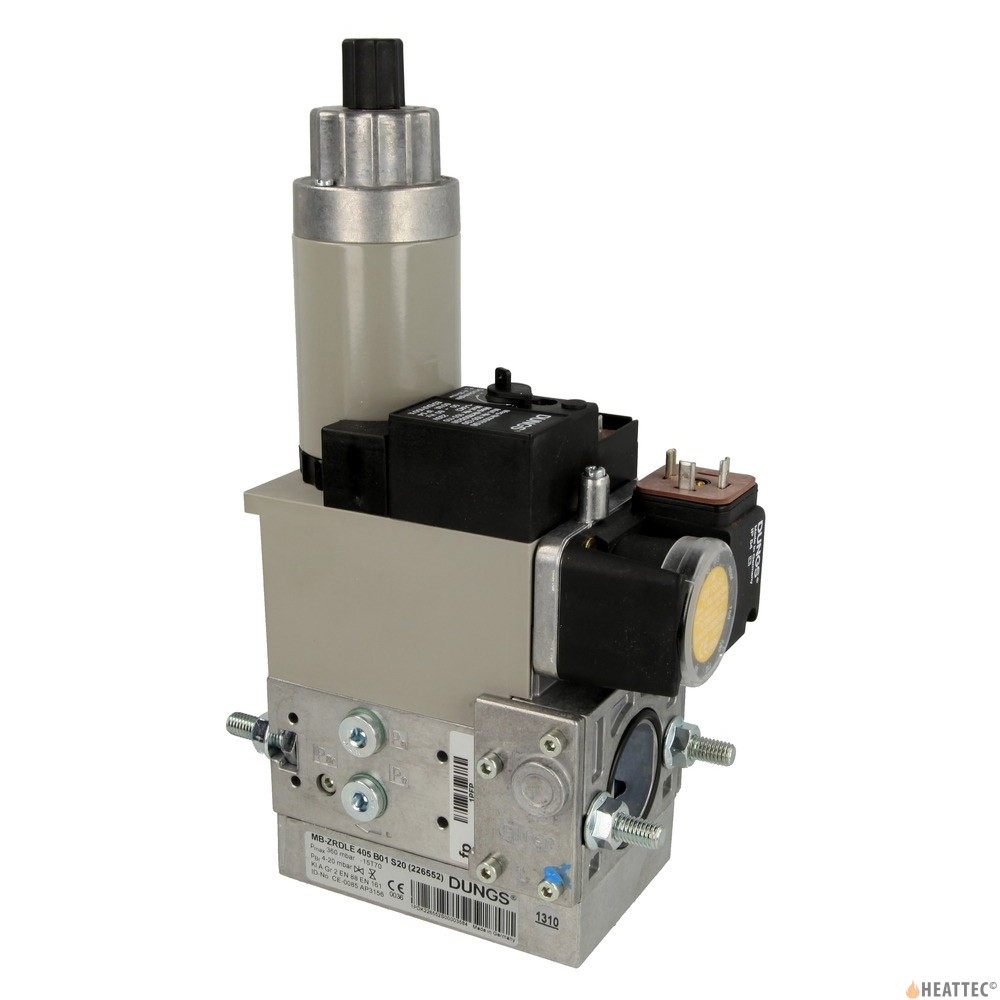

Dungs GasMultiBloc® MB-ZRDLE

Dungs GasMultiBloc® MB-ZRDLE

Dungs GasMultiBloc® MB-ZRDLE

Artikelnummer: HTC-MB-ZRDLE

The DUNGS GasMultiBloc® MB-ZRDLE for two stage operating integrates filter, regulator, valves and pressure switches in one compact fitting.

View leaflet

Beschikbaarheid: Levertijd op aanvraag

€ 1.114,00
€ 1.114,00

Zekerheden

  • Scherpe prijzen
  • Snelle levering
  • Advies van specialisten
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Productbeschrijving

Details

Technical description

  • Dirt trap: Fine-mesh sieve
  • One regulator and two main valves: B01
  • One one-stage valve and one two-stage valve
  • One valve is fast opening, one valve is slow or fast opening
  • Solenoid valves up to 360 mbar (36 kPa) as per DIN EN 161 Class A Group 2
  • Sensitive setting of output pressure by proportional regulator as per DIN EN 88 Class A Group 2
  • High flow rates with low pressure drop
  • DC solenoid drive interference degree N
  • Main volume restrictor and partial volume restrictor at valve V2
  • Hydraulic opening delay
  • Flange connections with pipe threads as per ISO 7/1
  • Simple mounting, compact, light-weight

The modular system permits individual solutions by using external ignition gas tap in connection with separately controlled valves, by adding a valve proving system, mini/maxi pressure switches, pressure limiters, limit switch and closing stroke limiter at valve V2, regulator blocking for liquid gas applications.

Application

The modular system permits individual solutions in gas safety and regulator engineering. Suitable for gases of families 1, 2, 3 and other neutral gaseous media.

Approvals

EC type testing certificate as per:

  • EC-Gas Appliances Regulation
  • EC-Pressure Equipment Directive

Approvals in other important gas consuming countries.

For more information, click here to take a look at the product brochure.

Extra informatie

Extra informatie

Fabrikant Dungs
GTIN / EAN 8713809076597
Max. werkdruk 360 mbar
Drukschakelaar GW150A5
Verwachte levering 1 week
Land van fabricage Duitsland
