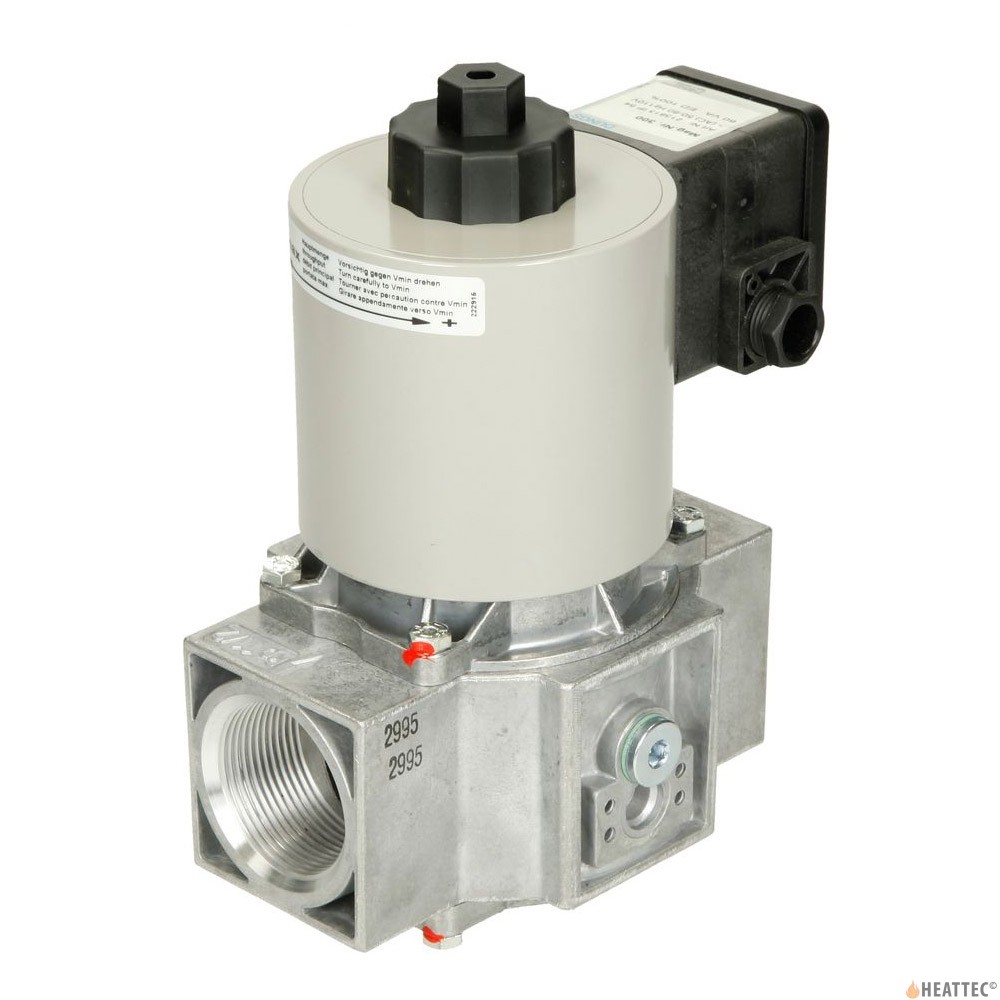

Dungs Magnetic Solenoid Valve MVD

Magnetic Solenoid Valve MVD

Dungs Magnetic Solenoid Valve MVD

Artikelnummer: HTC-MVD

Dungs MVD/5 Single-stage solenoid valve, opens and closes fast, manual limitation of flowing gas volume by adjusting main volume.

View leaflet

Beschikbaarheid: Levertijd op aanvraag

€ 278,00
€ 278,00

Zekerheden

  • Scherpe prijzen
  • Snelle levering
  • Advies van specialisten
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Productbeschrijving

Details

Technical description

The DUNGS safety solenoid valve MVD/5 is a single-stage automatic shut-off valve as per EN 161 for gas burners and gas appliance.

  • Max. operating pressure up to 200, 360 or 500 mbar (20, 36 or 50 kPa)
  • Normally closed
  • Fast opening
  • Main volume adjustable
  • DC solenoid, rectifier wiring with radio interference suppression in terminal box with PG screw union
  • Mountable closed position signal contact to monitor closed position of valve
  • Pipe thread as per ISO 7/1Flange connection as per DIN EN 1092-1
  • Reliable function, rugged and maintenance-free
  • On request, design without non-ferrous metals

Application

The solenoid valve is used for securing, limiting, shutting off and releasing gas supply to gas burners and gas appliances. MV/4 Range of application: for large breaking capacities, e.g. pulsed firing. The DUNGS safety solenoid valve MVD/5 is suitable for gases of families 1, 2, 3 and other neutral gaseous media.

Approval

EC type test approval as per EC Gas Appliance Directive: MV… CE-0085 AO3219

EC type test approval as per EC Pressure Equipment Directive: MV… CE0036

Approvals in other important gas consuming countries. Special designs for the North American market with UL, FM and CSA registratios.

For more information, click here to take a look at the product brochure.

Extra informatie

Extra informatie

Fabrikant Dungs
GTIN / EAN 8713809005849
Max. werkdruk 200 mbar
Verwachte levering 1-2 weken
Land van fabricage Duitsland
