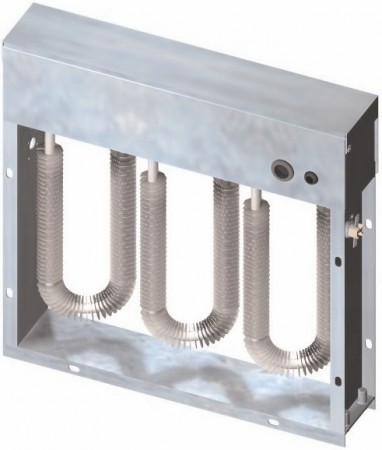

Electric Batteries with Spiral Fin Heating Elements (AHBAT Range)

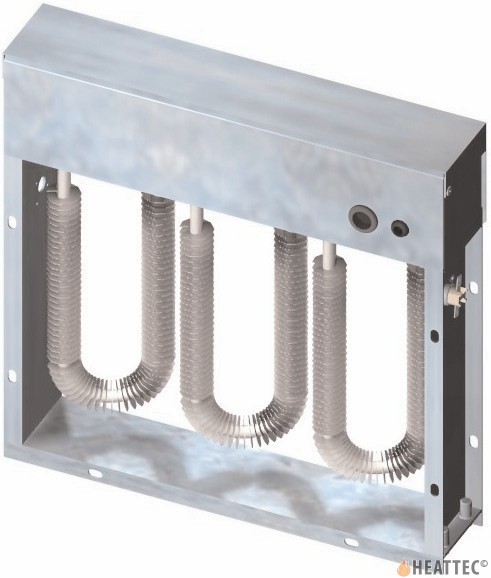

Electric Batteries AHBAT

Electric Batteries with Spiral Fin Heating Elements (AHBAT Range)

Artikelnummer: AHBAT3
  • AHBAT Models
  • met gesloten buis lamel elementen
  • Verzinkt kanaalbehuizing. RVS behuizingsframe op verzoek mogelijk
  • IP40 beschermingsklasse
  • New system of connection box with flap opening without removing the lid.
  • Geslotenbuiselementen uit AISI 304 met diameter van Ø10 mm
  • Voorzien van AISI 430 lamellen Ø26mm
  • Voorzien van doorvoer nippels M14 in verzinkt staal.

Bekijk brochure

Beschikbaarheid: Levertijd op aanvraag

€ 360,00
€ 360,00

Zekerheden

  • Scherpe prijzen
  • Snelle levering
  • Advies van specialisten
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Productbeschrijving

Details

General characteristics

  • Galvanized Fe plate frame. Optionally, and to order, stainless steel chassis.
  • IP40 damp protection rating
  • New system of connection box with flap opening without removing the lid.
  • Shielded tubular heating elements in AISI 304 stainless steel of Ø10 mm, heating element insulated with electro-smelted magnesium oxide and compressed by lamination.
  • Stainless steel AISI 430 fin of Ø26mm outside diameter
  • Crimped M14 zinc steel connectors.
  • M4 or M6 threaded connector depending on models
  • Application temperature: air output 60 °C
  • Air passage speed recommended for 60ºC:with vair = 3 m/sec
  • Klixon thermostat included with 85ºC protection. Optionally, with 110ºC thermostat
  • Possibility of connecting various modules.
  • 1 or 2 power stages depending on models, both in single and three phase.
  • Heating elements in single voltage ~230 V to enable different connection options.
  • Standard voltage: 3~230 V ³, 3~400 V

To order, we can supply other dimensions, wattages or voltages, as well as different rectangular finned heating
element options.

Options

  • All stainless steel.
  • For Ø8mm tube:
    stainless steel fin →Ø18, Ø24
    iron fin →Ø23
  • For Ø10mm tube:
    stainless steel fin →Ø20, Ø26, Ø30
    iron fin →Ø25, Ø30

Normal applications

  • To heat forced circulation air for heating premises, closed drying circuits in heaters, charge benches, etc. In general, for any application of forced air heating up
    to 200ºC (Maximum temperature with vair = 4 m/sec →200ªC).



Extra informatie

Extra informatie

Naam Electric Batteries with Spiral Fin Heating Elements (AHBAT Range)
Verwachte levering 1-2 weken
Fabrikant Electricfor
