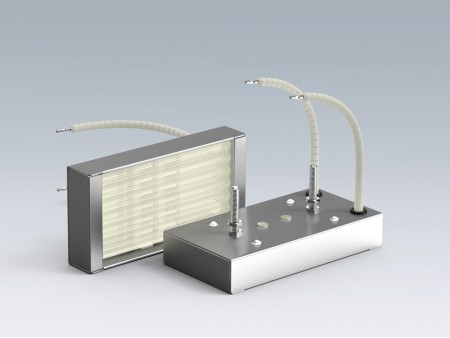

Quartz Infrared Panels

Quartz Infrared Heater

Quartz Infrared Panels

Artikelnummer: PQC150
  • Models PQC
  • Dimensions: 62,5 x 62,5 mm
  • Iron-Chrome aluminium resistance wire
  • Parallel translucent quartz tubes
  • Highly reflective aluminised steel body that ensures low loss of radiation from back of the heater
  • Supplied with two M5 x 30 screws which extend from the rear of the heater
  • Supplied with two 100 mm ±10 mm ceramic beaded power leads
  • Element dimensions and design can be adjusted to suit customer heating requirements
  • Quartz elements can also be supplied with an in-built type K thermocouple
  • Standard voltage ~230 V

View leaflet

Beschikbaarheid: Levertijd op aanvraag

€ 74,00
€ 74,00

Zekerheden

  • Scherpe prijzen
  • Snelle levering
  • Advies van specialisten
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Productbeschrijving

Details

Quartz infrared panels provide infrared radiation in medium wave length rang of 1,4 and 5,6 µm. They are favoured in industrial applications where rapid heat responce is necessary. They most cost effective in systems with longe heat off cycles as they reach operating temperature in a matter of seconds.

They have a recommended radiation distance of 100-200 mm. The heaters can be installed in refectors, projectors or panel for improved efficiency. In moving heater arrangements the elements should be fitted with tubes at right angles to the direction of travelling.

General characteristics

The quartz infrared panels are composed of:

  • Iron-Chrome aluminium resistance wire
  • Parallel translucent quartz tubes
  • Chrome-plated steel protective grill to prevent accidental contact with the heating element.
  • Highly reflective aluminised steel body that ensures a low loss of radiation from the back side of the heater
  • Two M5 x 30 mm screws which extend from the rear of the heater
  • Element dimensions and design can be adjusted to suit customer heating requirements
  • Quartz elements can also be supplied with a built in type K thermocouple
  • Standard voltage ~230 V

Usual applications

  • Paint drying steel panels - Acrylic
  • Paint drying steel panels - Epoxy
  • PVC paste curing
  • ABS forming
  • Polystyrene forming
  • Polyethylene forming
  • Polypropylene forming
  • Powder coating
  • Pre-lacquering
Extra informatie

Extra informatie

Naam Quartz Infrared Panels
Verwachte levering 1-2 weken
Fabrikant Electricfor
