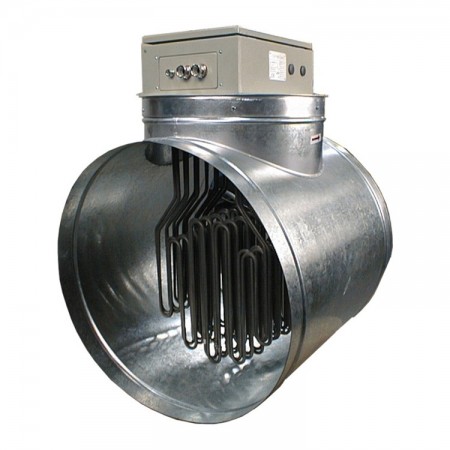

Three-phase Electric Circular Duct Heater BTT

Three-phase Electric Circular Duct Heater BTT

Three-phase Electric Circular Duct Heater BTT

Artikelnummer: HTC-ECF-BTT
Three-phase Electric Circular Duct Heater for heating up air by Electricfor. Several versions available with heating power from 250 to 15000 Watts.

View leaflet

Beschikbaarheid: Levertijd op aanvraag

€ 563,00
€ 563,00

Zekerheden

  • Scherpe prijzen
  • Snelle levering
  • Advies van specialisten
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Productbeschrijving

Details

  • Class I electrical heater
  • Steel painted connections box with degree protection against moisture IP44
  • Cylindrical pipe galvanised steel sheet. On request, in stainless steel
  • PG for power supply and control cables.
  • From 1 to 6 tubular elements in stainless steel tube AISI 321 or AISI 304L of Ø 6.4mm for the single-phase models and Ø8 mm for the three-phase models.
  • Built-in safety thermostat of 85ºC. On request we can supply a safety thermostat of 110ºC.
  • 1 or 2 power stages according to models, in both single-phase and three-phase groups.
  • Heating elements in unitary voltage ~230V in order to make the different connection options easier.
  • High resistance to impacts and splashes of water.
Model
Power (Watts)
Duct diameter (mm)
Weight (Kg)
BTT160-1,5
250-1500
160
3,5
BTT200-3
500-3000
200
5,1
BTT250-4,5
750-4500
250
6,1
BTT315-6
2000-6000
315
6,7
BTT315-9
1500-9000
315
7,6
BTT355-9
1500-9000
160
7,9
BTT355-12
4000-12000
355
8,2
BTT400-15
2500-15000
355
9,8
Extra informatie

Extra informatie

Naam Three-phase Electric Circular Duct Heater BTT
Verwachte levering 1-2 weken
Aansluitspanning 400V
Fabrikant Electricfor
